Front Upper Coil-Over Mounts (Choose Vehicle)

$149.00

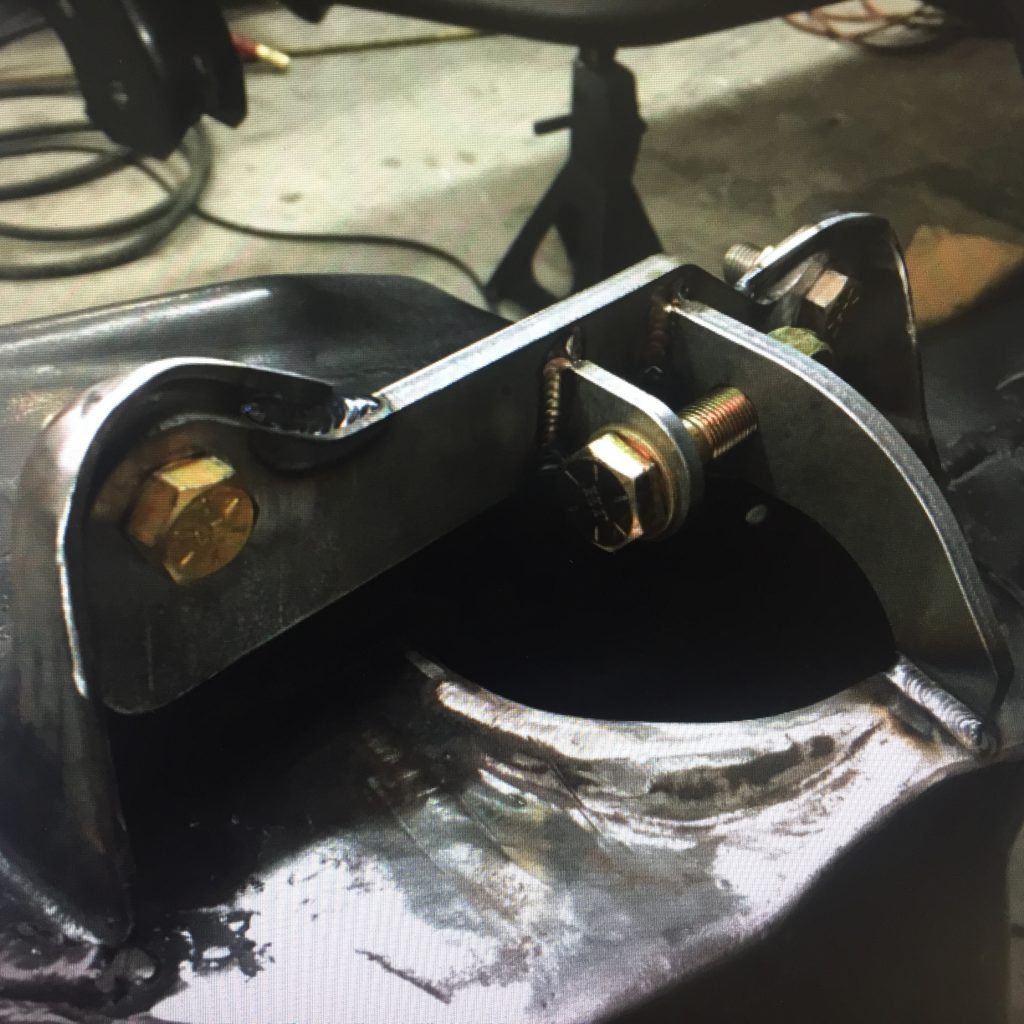

  • Front Upper Frame Mounts for Bearing Style Coil Overs
  • Bolts onto backside of upper cross-shaft frame mount to locate (welding after this is required)
  • Converts upper shock stud mount to a bearing style upper shock mount (1″ wide x 1/2″ ID)
  • Does away with the sloppy stud / rubber bushing type upper coil over mount
  • Does away with the flattening of the rubber bushings that tends to happen over time on coil-over setups
  • More precise suspension movement is the direct result (no more rubber bushing slop to account for)
  • Uses any 1″ wide x 1/2″ ID upper shock mount. We recommend 4″ Stroke shocks for most applications (Note:  AFCO shocks require their “Z” Rod upper shock mount for vehicles wanting a low front ride height)
  • Includes (2) Grade 8 shock bolts / nylocks, LH upper mount, RH upper mount, (2) travel limiter bolt pad brackets (Where applicable / G-Body and S10)

Installation Notess:

1st Gen Camaro / Firebird and 68-74 Nova (316-2), 68-72 Chevelle / A-Body (317-22), 78-88 Malibu / G-Body (319-2) and 82-03 S10 / Blazer (S10-2) Requires the use of a Maximum 4″ Stroke Shock

2nd Gen Camaro / Firebird (318-2) Requires the use of a Maximum 5″ Stroke Shock
$149.00

Product Description

  • Front Upper Frame Mounts for Bearing Style Coil Overs
  • Bolts onto backside of upper cross-shaft frame mount to locate (welding after this is required)
  • Converts upper shock stud mount to a bearing style upper shock mount (1″ wide x 1/2″ ID)
  • Does away with the sloppy stud / rubber bushing type upper coil over mount
  • Does away with the flattening of the rubber bushings that tends to happen over time on coil-over setups
  • More precise suspension movement is the direct result (no more rubber bushing slop to account for)
  • Uses any 1″ wide x 1/2″ ID upper shock mount. We recommend 4″ Stroke shocks for most applications (Note:  AFCO shocks require their “Z” Rod upper shock mount for vehicles wanting a low front ride height)
  • Includes (2) Grade 8 shock bolts / nylocks, LH upper mount, RH upper mount, (2) travel limiter bolt pad brackets (Where applicable / G-Body and S10)

Installation Notess:

1st Gen Camaro / Firebird and 68-74 Nova (316-2), 68-72 Chevelle / A-Body (317-22), 78-88 Malibu / G-Body (319-2) and 82-03 S10 / Blazer (S10-2) Requires the use of a Maximum 4″ Stroke Shock

2nd Gen Camaro / Firebird (318-2) Requires the use of a Maximum 5″ Stroke Shock
