Elite Series II Wishbone Kit

The HC&D Elite Series II Wishbone kit was purpose built to offer a precise slider that doesn't require grease as lubricant avoiding built up grime, rubber, and dirt on your slider.  Slop translates to lateral movement and we minimize it with this precision machined wishbone slider and kit.  With a 1 3/4" external slider tube and 1 1/4" internal slider shaft, makes this setup very strong, slides super smooth, and durable.

Specs:

• 10" 4140 1 1/4" ground and polished internal slider shaft
• 8" 1 3/4 x .188 4130 external slider tube
• Self lubricating bushings
• 3/4-1/2 4130 slider heim

• All 4130 construction
• Kit includes enough material to make a wishbone that is 32" long x 16" wide

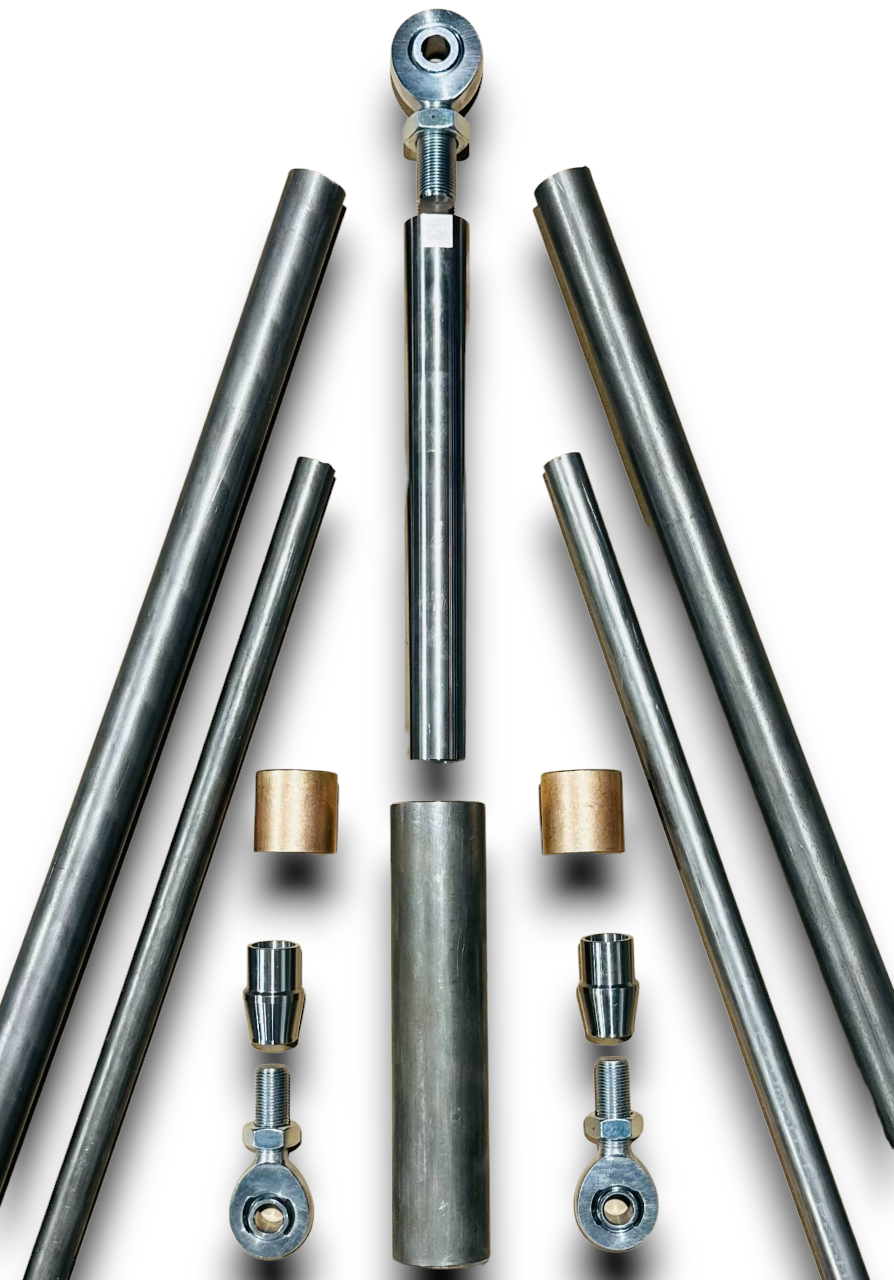

Elite series wishbone kit will include:

• 1ea 10" internal slider shaft
• 1ea 8" external slider tube
• 2ea Self lubricating bushings
• 2ea Spiral lock rings
• 1ea RH 3/4-1/2 4130 heim with jam nut
• 2ea RH 5/8-1/2 4130 heims with jam nuts
• 2ea RH 1 1/8 .065 x 5/8-18 4130 threaded tube adapters
• 2ea 24" 1 1/8  .065 4130 tube
• 2ea 18" 3/4  .058 or 7/8 .065 4130 tube

 Welding Required  or choose our Assembly service

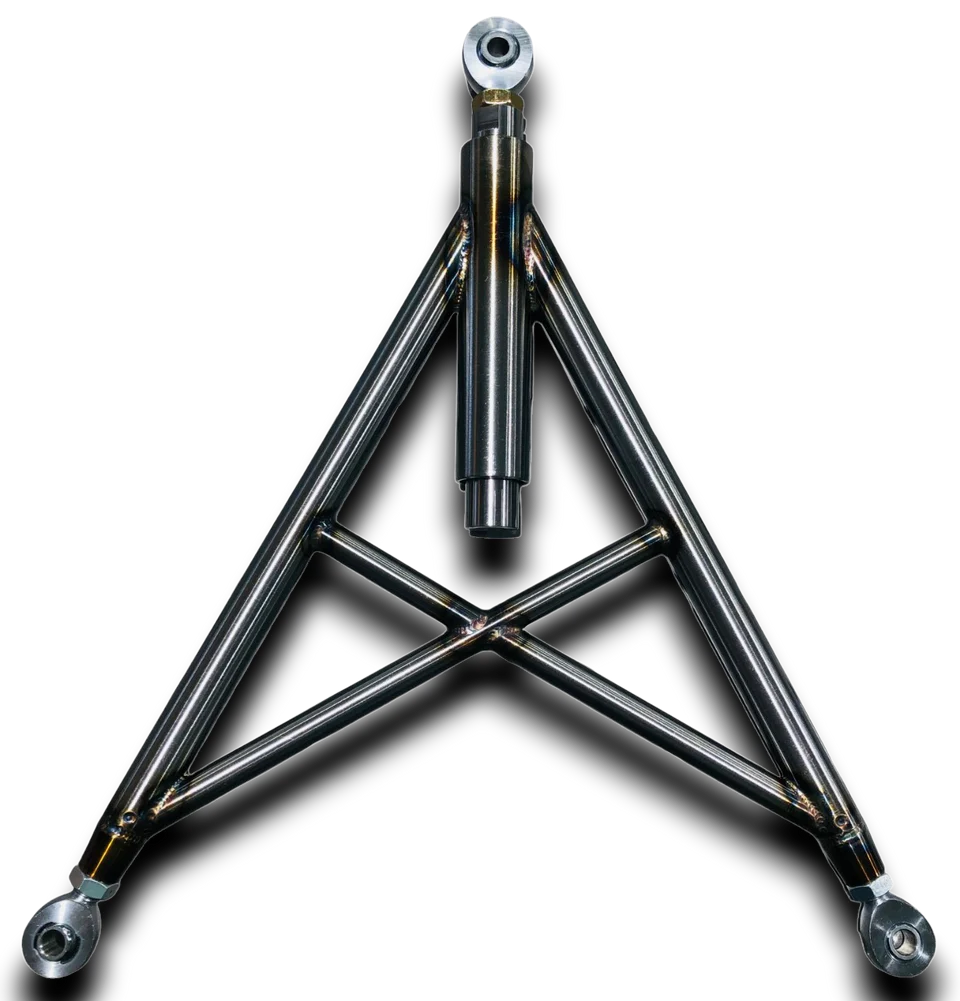

We are now offering an assembled and welded wishbone fabrication service using the Elite Series II Wishbone Kits.  If you have been needing a custom wishbone or thought about building one but have steered clear because of the challenges involved, this option is for you!

Specs:

• We will need some basic dimensions (length and width of mounting points)
• Wishbone uses our Elite Series II Wishbone kit.  The finest slider on the market!
• Built on one of your wishbone jigs for accuracy and trueness
• Wishbone will be raw polished tubing with no coating
