Adjustable Universal 4 Link Chassis Brackets (Economy)

This bracket kit is designed to be universal and can be modified to fit an existing chassis layout.  Additionally, they can be mounted between existing chassis 4 link brackets and provide an 1/8" adjustment capability. The bracket assembly is made of 4130N making it a great choice for longevity and durability. Heim bracket adjustment range is suitable for both small and big tire applications.

The 1/4 bolt serves as the adjustment indicator for a given heim hole choice, adjusting through the sweep in 1/8" increments up to 5/8" before needing to adjust to the next heim hole.  Because the upper adjustments are on an angle, the upper 4 link bar stays at the same approximate nominal length through the adjustment sweep making the adjustment variable more consistent.

Specs:

• 4130N material
• 16" in height top to bottom of main bracket
• 1/4" main brackets layered x 3 for overall width of 3/4"
• 1/4" heim brackets
• 1/8" doublers

• 12pt grade 9 hardware

• 1/2" Holes on 5/8" spacing
• 1/8" adjustment capability
• No lightening pocket on perimeter to allow plenty of material for welding in the chassis

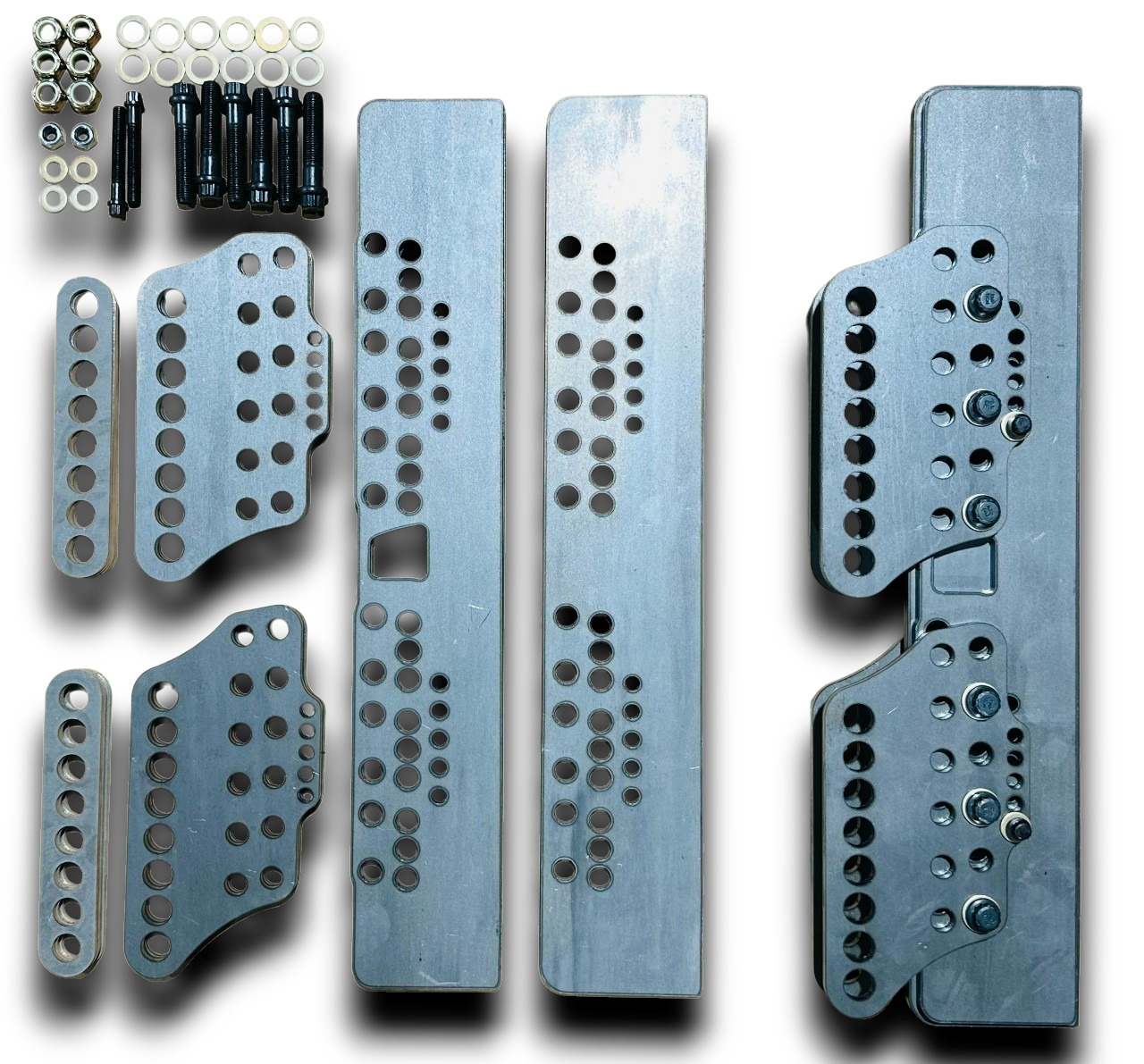

Adjustable 4 Link Chassis Brackets (Economy) kit will include:

• 2ea 1/4” 4 link chassis inner brackets
• 4ea 1/4" 4 link chassis outer brackets
• 4ea 1/4" 4 link chassis upper heim brackets
• 4ea 1/8" 4 link chassis upper heim bracket doublers
• 4ea 1/4" 4 link chassis lower heim brackets
• 4ea 1/8" 4 link chassis lower heim bracket doublers
• 12ea 3/8-24 12 point bolts, NAS washers, and nylon jam nuts

• 4ea 1/4-28 12 point bolts, NAS washers, and nylon jam nuts

***Requires TIG welding. The perimeter of the main bracket layers has an 1/8" step to allow for a good welding surface***

***Recommend welding no more than 2” at a time alternating ends and sides to minimize heat and distortion.  Clamp to a flat surface is best ***
