Adjustable Housing Upper Control Arm Brackets COPO/Cobra Jet (Economy)

US Patent Pending

Specs:

• 4130N material
• 1/4" main brackets layered x 3 for overall width of 3/4"
• 1/4" heim brackets
• 1/8" doublers

• 12pt grade 9 hardware
• 3.5" Axle tube radius
• 1/2" Holes on 5/8" spacing
• 1/8" adjustment capability

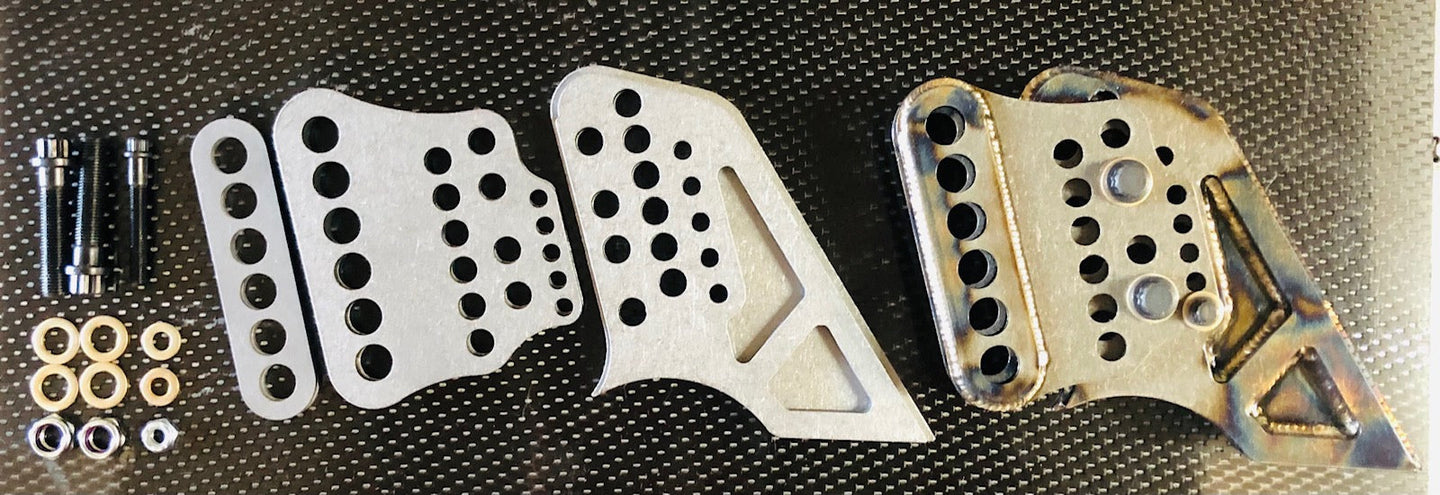

Adjustable UCA COPO/Cobra Jet Bracket (Economy) kit will include:

• 2ea 1/4” UCA housing inner brackets
• 4ea 1/4" UCA housing outer brackets
• 4ea 1/4" UCA housing lower heim brackets
• 4ea 1/8" UCA housing lower heim bracket doublers
• 3/8-24 12 point bolts, NAS washers, and nylon jam nuts

• 1/4-28 12 point bolts, NAS washers, and nylon jam nuts

***Requires TIG welding. The perimeter of the main bracket layers has an 1/8" step to allow for a good welding surface.  Additionally, the lightening pockets serve as a perimeter for additional welding for maximum bonding and strength***

***Recommend welding no more than 2” at a time alternating ends and sides to minimize heat and distortion.  Clamp to a flat surface is best ***
