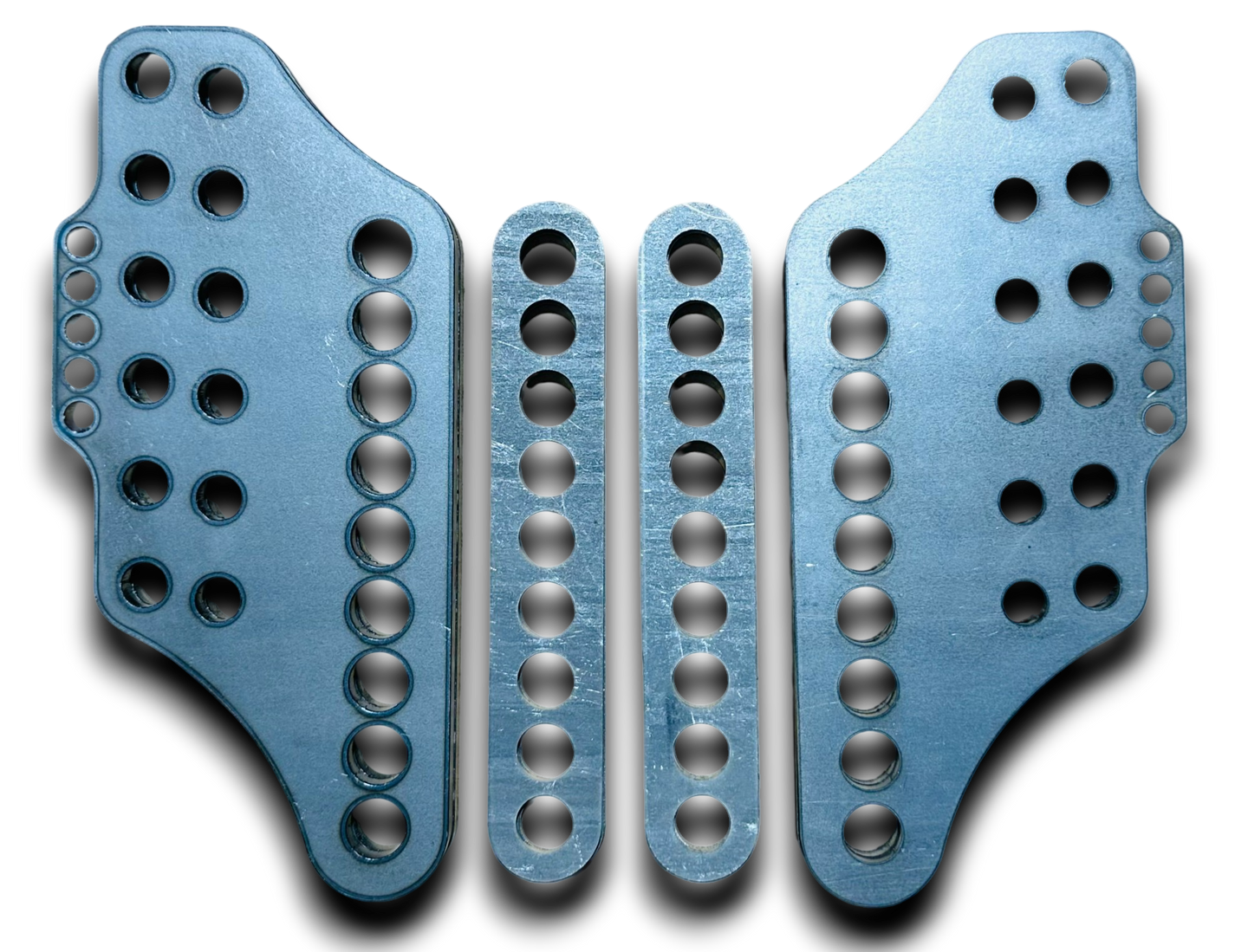

Adjustable 4 Link Chassis Heim Brackets (Extended 2 holes) (Economy)

These brackets bolt directly to and are compatible with 13" or 15" economy 1/8" adjustable chassis 4 link brackets. The bracket assembly is made of 4130N making it a great choice for longevity and durability.

Specs:

• 4130N material
• 1/4" heim brackets
• 1/8" doublers

• 1/2" Holes on 5/8" spacing
• 1/8" adjustment capability
• Extended 2 holes on the lower side for more adjustment range
• Compatible with our 13" or 15" layer economy 1/8" adjustable chassis brackets

Kit includes:

• 4ea 1/4" upper heim brackets
• 4ea 1/8" upper heim bracket doublers

***Requires TIG welding of doublers***
