Adjustable 13" 4 Link Chassis Brackets (Economy)

Specs:

• 4130N material
• 1/4" main brackets layered x 3 for overall width of 3/4"
• 1/4" heim brackets
• 1/8" doublers

• 12pt grade 9 hardware
• 22" Radius on upper hole arc
• 1 5/8" Tube notches
• 13" Spread (top of lower notch to bottom of top notch)
• 4 deg angle between upper and lower notch center
• 1/2" Holes on 5/8" spacing
• 1/8" adjustment capability
• No lightening pocket in center of bracket making it a good location to weld support tube gussets

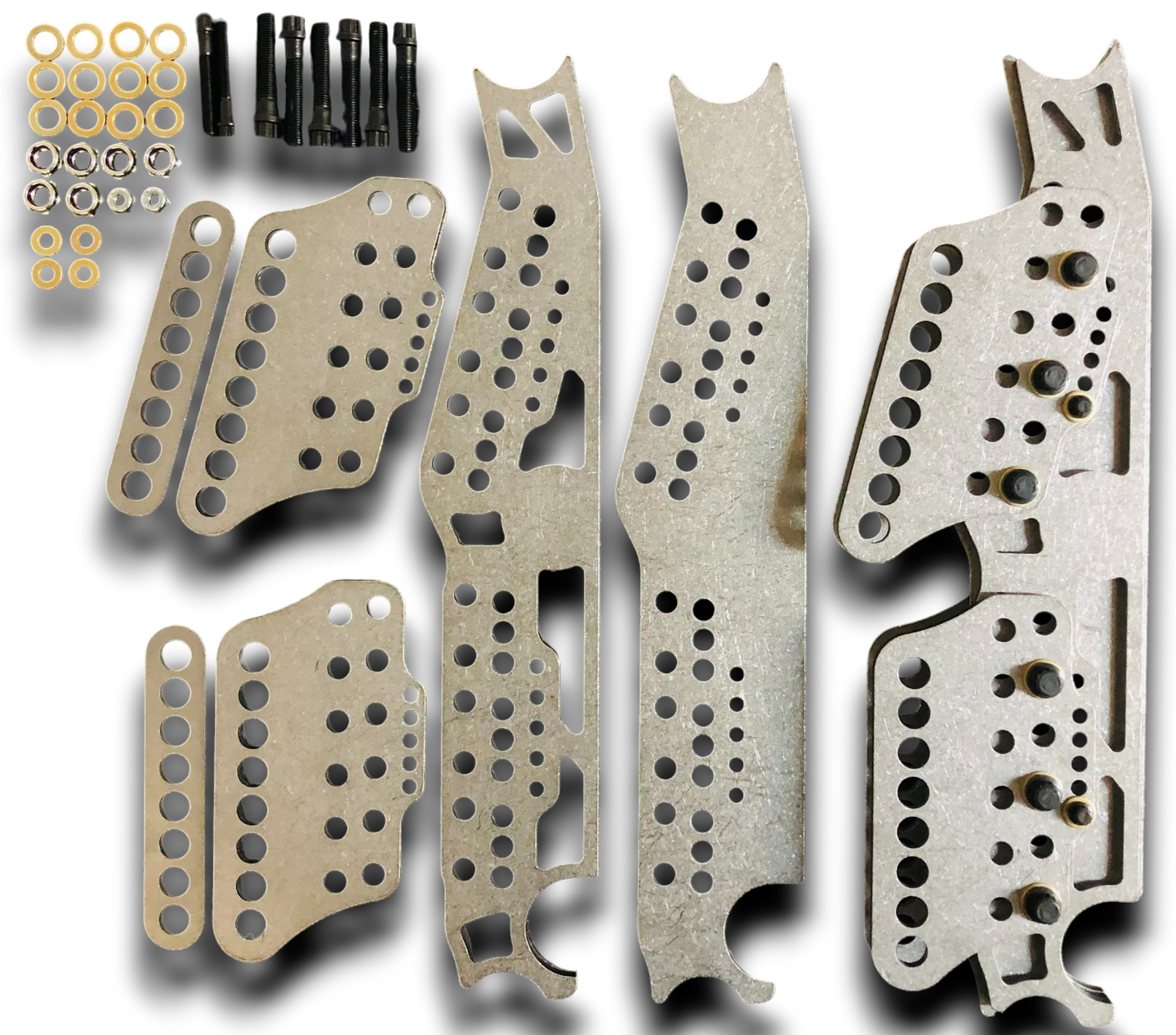

Adjustable 4 Link Chassis Brackets (Economy) kit will include:

• 2ea 1/4” 4 link chassis inner brackets
• 4ea 1/4" 4 link chassis outer brackets
• 4ea 1/4" 4 link chassis upper heim brackets
• 4ea 1/8" 4 link chassis upper heim bracket doublers
• 4ea 1/4" 4 link chassis lower heim brackets
• 4ea 1/8" 4 link chassis lower heim bracket doublers
• 12ea 3/8-24 12 point bolts, NAS washers, and nylon jam nuts

• 4ea 1/4-28 12 point bolts, NAS washers, and nylon jam nuts

***Requires TIG welding. The perimeter of the main bracket layers has an 1/8" step to allow for a good welding surface.  Additionally, the lightening pockets serve as a perimeter for additional welding for maximum bonding and strength***

***Recommend welding no more than 2” at a time alternating ends and sides to minimize heat and distortion.  Clamp to a flat surface is best ***
