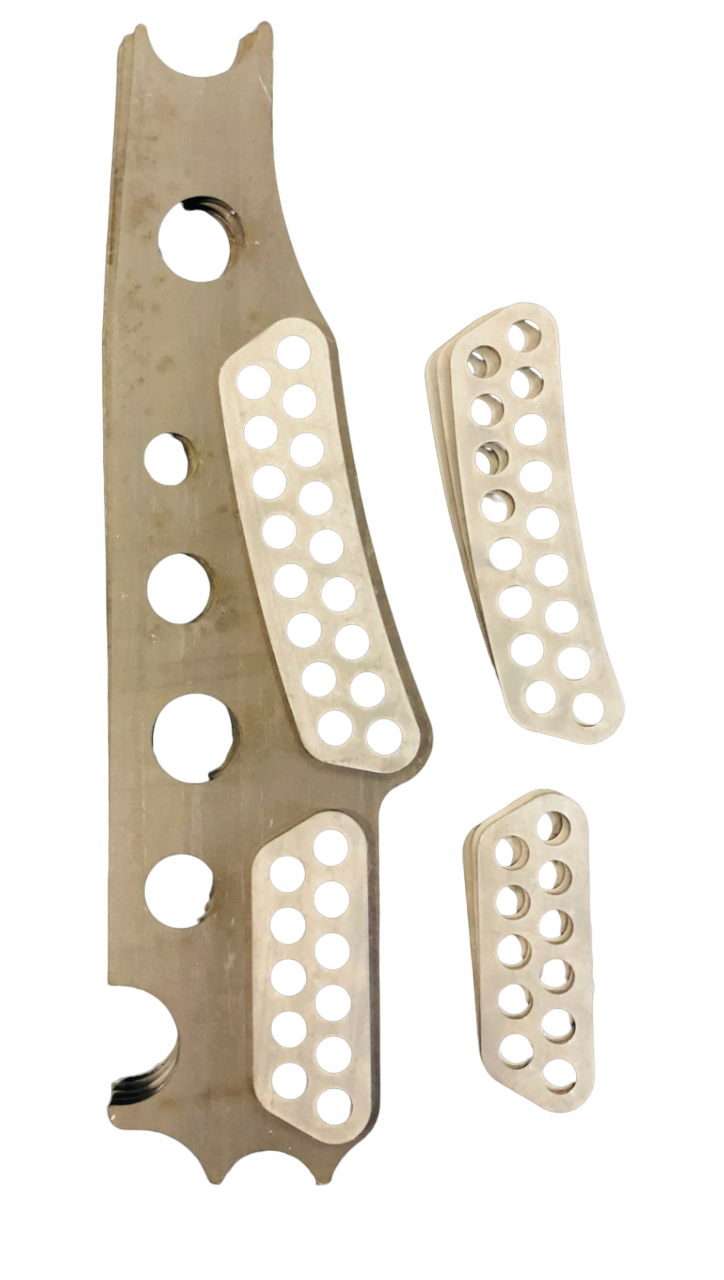

4130 4 Link Chassis Brackets

Specs:

• 4130 material
• 1/4" main bracket
• 1/8" main bracket doublers

• 22" Radius on upper hole arc
• 1 5/8" Tube notches
• 4 deg angle between upper and lower notch center
• 1/2" Holes on 5/8" spacing
• Lightening holes or can be used for shear tubes for added strength
• 13” or 15” measurement is from top of #1 bar notch to bottom of #15 bar notch
• Pro-Jack notches

Chassis 4 link bracket kit will include:

• 4ea 1/4” 4 link chassis brackets
• 8ea 1/8" 4 link chassis bracket doublers
