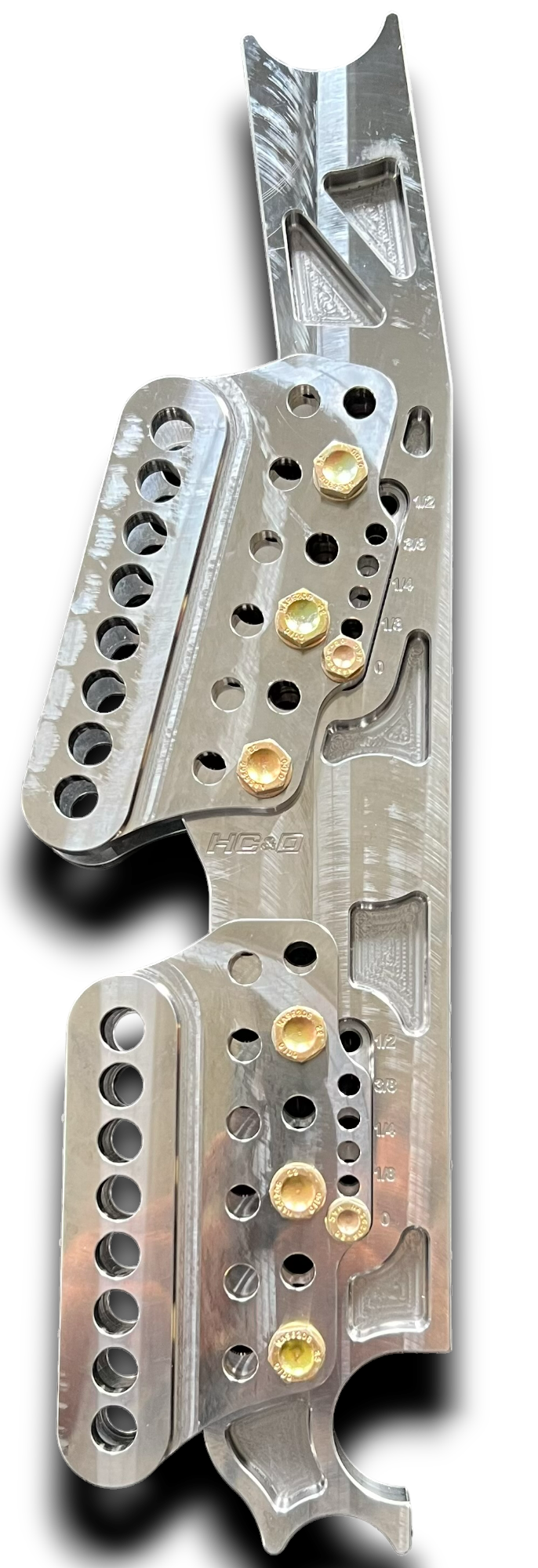

15" Billet Adjustable 4 Link Chassis Brackets

Specs:

• 4140 material
• 3/4" Billet main bracket
• 1/2" Billet heim bracket
• NAS hardware
• Key way locking system for ultimate strength
• 1/8" Increment positioning guide etched in bracket
• 1/8" Adjustment capability
• 22" Radius on upper hole arc
• 1 5/8" Tube notches
• 15" Spread (top of lower notch to bottom of top notch)
• 4 deg angle between upper and lower notch center
• 1/2" Holes on 5/8" spacing
• No lightening pocket in center of bracket making it a good location to weld support tube gussets
• Integrated projack notch on bottom of bracket

Billet Adjustable 4 Link Chassis Bracket kit will include:

• 2ea 3/4” 4 link chassis main brackets
• 4ea 4 link chassis upper heim brackets
• 4ea  4 link chassis lower heim brackets
• 12ea 3/8-24 NAS bolts, NAS washers, and NAS jam nuts

• 4ea 1/4-28 NAS bolts, NAS washers, NAS jam nuts
